Double width Flow_on machine

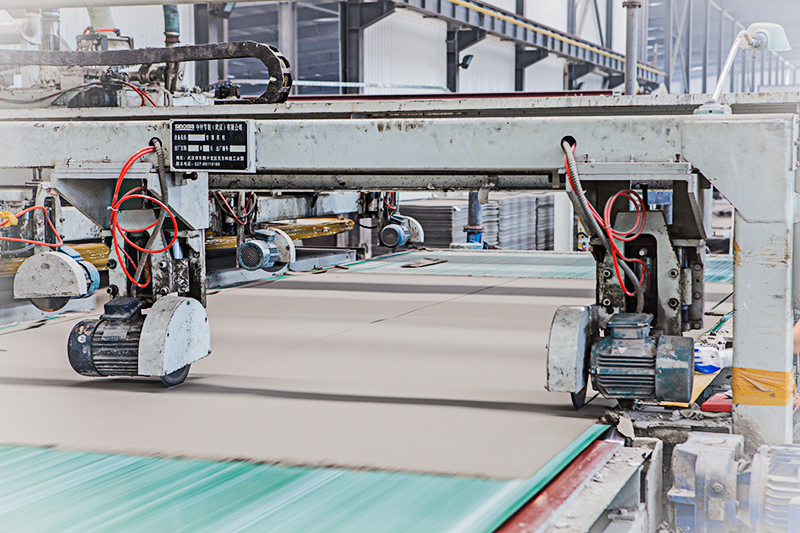

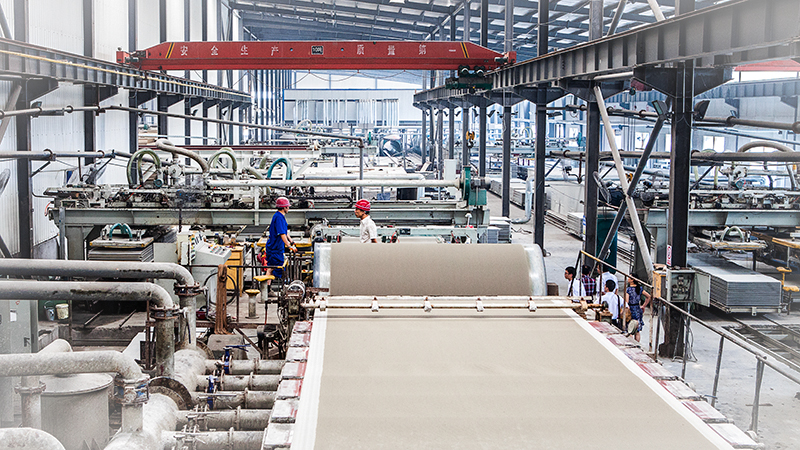

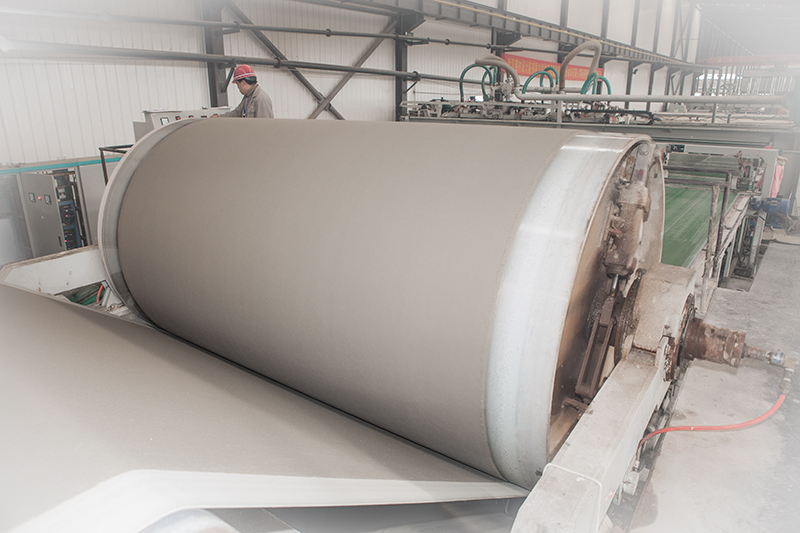

Some technical man want to know the double width flow on machine information. here is some pics

1: The Double width flow on machine felt width is 2.9 meter ,always felt length is 29.5M or 33M

2: Total 9 vacuum box for board dewatering and 1 vacuum box for felt clean

3: Each time the forming roller will forming 4 pieces board  with size: 2440*1220

4: Speed is always 70-80M/MIN

5: No asbestos

6: In china ,now total 9 lines(5 factory 3+2+2+1+1=9) running with this type.
